Products Description
Cable size:0.5~1.5mm²(A.W.G.22~16) Max current:Imax=10A Material: brass

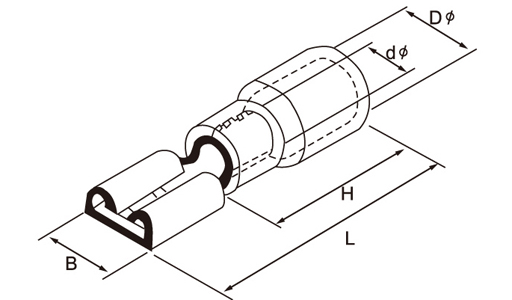

| Item No. | Name Tab | Thickness of material | Dimension(mm) | Color | ||||
| (mm) | (mm) | B | d | D | L | H | ||
| FDD1.25-110(5) | 0.5×2.8 | 0.4 | 3.8 | 1.7 | 3.8 | 19 | 10 | Red |
| FDD1.25-110(8) | 0.8×2.8 | 0.4 | 3.8 | 1.7 | 3.8 | 19 | 10 | |
| FDD1.25-187(5) | 0.5×4.75 | 0.4 | 5.6 | 1.7 | 3.8 | 19 | 10 | |
| FDD1.25-187(8) | 0.8×4.75 | 0.4 | 5.6 | 1.7 | 3.8 | 19 | 10 | |
| FDD1.25-205 | 0.5×5.2 | 0.4 | 6.5 | 1.7 | 3.8 | 20 | 10 | |
| FDD1.25-250 | 0.8×6.35 | 0.4 | 7.4 | 1.7 | 3.8 | 21 | 10 | |
Cable size:1.5~2.5mm²(A.W.G.16~14) Max current:Imax=15A Material: brass
| Item No. | Name Tab | Thickness of material | Dimension(mm) | Color | ||||
| (mm) | (mm) | B | d | D | L | H | ||
| FDD2-110(5) | 0.5×2.8 | 0.4 | 3.8 | 1.7 | 3.8 | 18.7 | 10.6 | Blue |
| FDD2-110(8) | 0.8×2.8 | 0.4 | 3.8 | 1.7 | 3.8 | 18.7 | ||
| FDD2-187(5) | 0.5×4.75 | 0.4 | 5.6 | 1.7 | 3.8 | 18.7 | ||
| FDD2-187(8) | 0.8×4.75 | 0.4 | 5.6 | 1.7 | 3.8 | 18.7 | ||
| FDD2-205 | 0.5×5.2 | 0.4 | 6.5 | 1.7 | 3.8 | 19.7 | ||
| FDD2-250 | 0.8×6.35 | 0.4 | 7.4 | 1.7 | 3.8 | 21.4 | ||
| FDD2-312 | 0.8×8.0 | 0.4 | 8.9 | 1.7 | 3.8 | 24.1 | ||
Cable size:4.0~6.0mm²(A.W.G.12~10) Max current:Imax=24A Material: brass
| Item No. | Name Tab | Thickness of material | Dimension(mm) | Color | ||||
| (mm) | (mm) | B | d | D | L | H | ||
| FDD5.5-250 | 0.8×6.35 | 0.4 | 7.4 | 5.7 | 3.4 | 24.5 | 13 | Yellow |
| FDD5.5-375 | 1.2×9.4 | 0.5 | 10.9 | 5.7 | 3.4 | 29.3 | 13.5 | |

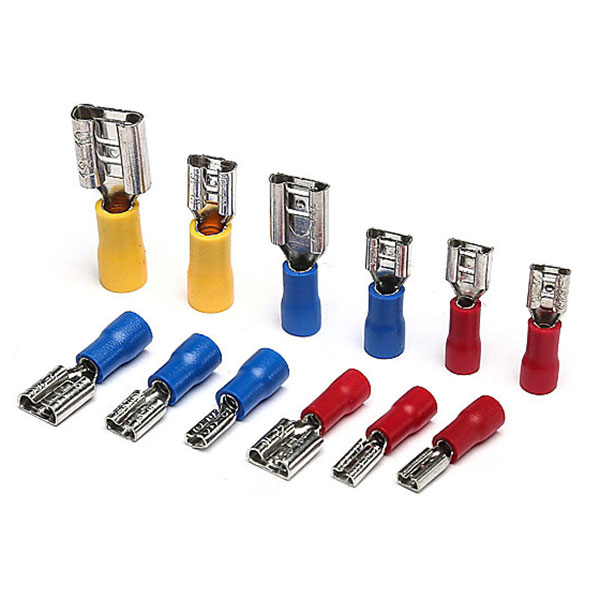

Vinyl-Insulated Terminals
