Products Description

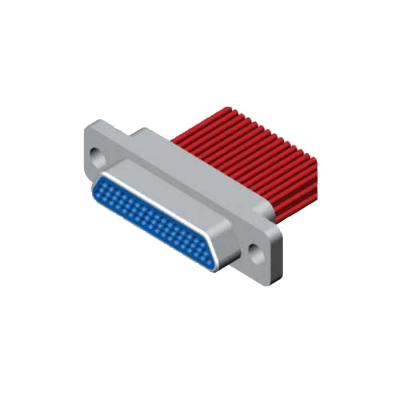

J30J Series Micro-D MIL-Spec Connectors
- This series is equivalent to USA MDM series;
- Nine types :9, 15, 21, 25, 31, 37, 51, 74, 100;
- Mated wire section area: 0.1～15 mm2;
- This series employs high-density flexible pins;
- Meeting the requirements of GJB2446 “Polarized shell, micro miniature rectangular electrical connector general specification” (equivalent to MIL-C-83513）;
- The locking subassemblies are offered with the connectors according to your order. You should give me information in the papers, if you do not need the locking subassemblies.
- This series comply with the following specification:
Q/Ln.J6-69-92 J30 Series Miniature Rectangular Electronic Connector Technical Condition.
J30J Miniature Rectangular Electronic Connector Series
Characteristic
| Ambient temperature | -55°C～ +125°C | Rated current | 3 A |
| Relative humidity | 98% at +40°C | Insulation resistance | ≥ 5000MΩ |
| Contact resistance | ≤ 10mΩ | Mechanical life | 500 times |
| Dielectric withstand voltage | 800 V | Vibration | 10Hz ~ 2000Hz 196 m/s2 |
| Random vibration | Power spectral density 0.4 g2/Hz, Total acceleration rms value 23.1g | Shock | 735 m/s2, 11ms |
| Acceleration | 735 m/s2 | Low air pressure | 4.5 kPa 200V |
Product Family Tree
J30J Common Series | |||||
with crimp contacts |
with solder contacts |
with the grid of 2.54X2.54 |
with the grid of 1.27X2.54 (row x line) |
with the grid of 2.54X2. 54 |
with the grid of 1.27X2. 54 (row X line) |
| J30J Improved Series | ||||
With crimp contacts and metal shield cover. And the drawing cable direction is parallel with contact axis. |
With crimp contacts. And the drawing cable direction is vertical with contact axis. |
With crimp contacts and horizontal groove specially designed near the mounting hole to prevent the hex nut spinning. Only for front-of-panel mounting. |
With crimp contacts and metal shield cover. And the drawing cable direction is vertical with contact axis. Horizontal groove specially designed near the mounting hole to prevent the hex nut spinning. Only for front-of-panel mounting. |
With crimp contacts, and the shell is wider than others. |
J30J Locking subassemblies | |
Type L, Type K and Type KI for end-free locking subassemblies. |
Type P, Type PO, Type Pl, Type P2, Type P3, Type P4 Type P5, Type P7, Type P8, Type P9, Type PIO, Type Pl 1, Type P14, Type V and Type VI for end-fixed locking subassemblies. |
According to the locking subassemblies, this series consists of end-free locking subassemblies and end-fixed locking subassemblies.
J30J Cable Clipper Subassemblies | |
Type A1 cable clipper is used only with J30J common crimp plug (receptacle) subassembly. |
Type A3 cable clipper can be used with J30J common crimp plug (receptacle) components or with J30J common solder S-series plug (receptacle) subassemblies. |
This series consists of type A1 and type A3 cable clipper subassemblies.
Contact arrangement
 |  |
| J30J-9 | J30J-I5 |
 |  |
| J30J-21 | J30J-25 |
 |  |
| J30J-31 | J30J-37 |
 |  |

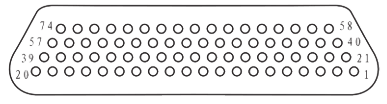

| J30J-51 | J30J-74 |
 | |

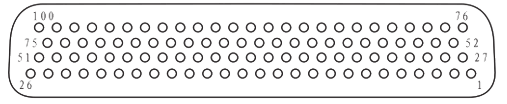

| J30J-100 | |
Order mark
| J30J | – | 51 | ZK | P | G | – | AD | ||
Main code:
| J30J | ||||||||
Number of contacts:
| 51 | ||||||||
Connector and contact type:
| ZK | ||||||||
Type of contact terminal:
| – | ||||||||
Type of locking subassemblies:
| P | ||||||||
Finishing:
| G | ||||||||
Improved type:
| AD |
Example: J30J-51 ZK P G-AD
The above mark means: a J30J fixed-end connector with 51 contacts, receptacle with socket, crimp terminal, Type P locking subassemblies, shell plated with cadmium and with shielding braid cable clipper, and with spinning-resistance groove.
