Products Description

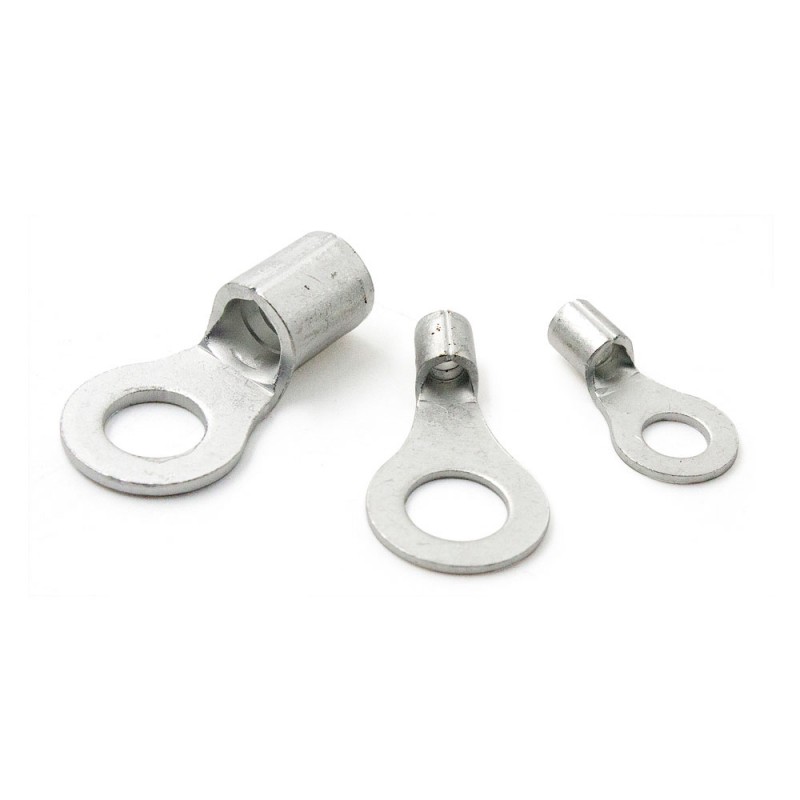

Designed as a non-insulated terminal, it enables direct crimping and features a ring shape for stable bolt connection. Crafted from high-purity oxygen-free copper with a tin-plated finish for corrosion resistance, this terminal is ideal for applications in industrial control systems, automotive battery setups, power distribution networks, and solar panel wiring.
Cable size:0.5~1.5mm²(A.W.G.22-16) Max current:Imax=19A Material: purple copper Thickness:0.7mm
| Item No. | Dimension(mm) | |||||||
| American Bolts number | d2Φ | B | L | F | E | DΦ | dΦ | |
| RNB1.25-3 | #4 | 3.2 | 5.7 | 12.6 | 4.95 | 4.8 | 3.4 | 1.7 |
| RNBS1.25-3.5 | #6 | 3.7 | 5.7 | 12.6 | 4.95 | |||
| RNBM1.25-3.5 | #6 | 3.7 | 6.6 | 14.4 | 6.3 | |||
| RNBL1.25-3.5 | #6 | 3.7 | 8.0 | 15.8 | 7.0 | |||
| RNBS1.25-4 | #8 | 4.3 | 6.6 | 14.4 | 6.3 | |||
| RNBL1.25-4 | #8 | 4.3 | 8.0 | 15.8 | 7.0 | |||
| RNB1.25-5 | #10 | 5.3 | 8.0 | 15.8 | 7.0 | |||
| RNB1.25-6 | 1/4 | 6.4 | 11.6 | 21.8 | 11.2 | |||
| RNB1.25-8 | 5/16 | 8.4 | 11.6 | 21.8 | 11.2 | |||
| RNB1.25-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | |||
| RNB1.25-10 | 1/2 | 13.0 | 19.2 | 31.0 | 16.5 | |||
Cable size:1.5~2.5mm²(A.W.G.16-14) Max current:Imax=27A Material: purple copper Thickness:0.8mm
| Item No. | Dimension(mm) | |||||||
| American Bolts number | d2Φ | B | L | F | E | DΦ | dΦ | |
| RNB2-3 | #4 | 3.2 | 6.6 | 12.3 | 4.2 | 4.8 | 4.1 | 2.3 |
| RNBS2-3.5 | #6 | 3.7 | 6.6 | 12.3 | 4.2 | |||
| RNBM2-3.5 | #6 | 3.7 | 6.6 | 16 | 7.9 | |||
| RNBL2-3.5 | #6 | 3.7 | 8.5 | 16.8 | 7.75 | |||
| RNBS2-4 | #8 | 4.3 | 6.6 | 16 | 7.9 | |||
| RNBL2-4 | #8 | 4.3 | 8.5 | 16.8 | 7.75 | |||
| RNBS2-5 | #10 | 5.3 | 8.5 | 16.8 | 7.75 | |||
| RNBL2-5 | #10 | 5.3 | 9.5 | 16.8 | 7.25 | |||
| RNB2-6 | 1/4 | 6.4 | 12.0 | 21.8 | 11.0 | |||
| RNB2-8 | 5/16 | 8.4 | 12.0 | 21.8 | 11.0 | |||
| RNB2-10 | 3/8 | 10.5 | 13.6 | 25.5 | 13.9 | |||
| RNB2-12 | 1/2 | 13.0 | 19.2 | 31.0 | 16.5 | |||
Cable size:2.5~4mm²(A.W.G.14-12) Max current:Imax=37A Material: purple copper Thickness:1.0mm
| Item No. | Dimension(mm) | |||||||
| American Bolts number | d2Φ | B | L | F | E | DΦ | dΦ | |
| RNB3.5-4 | #8 | 4.3 | 8 | 18 | 7.7 | 6 | 5 | 3 |
| RNBS3.5-4 | #10 | 5.3 | 8 | 18 | 7.7 | |||
| RNBL3.5-5 | #10 | 5.3 | 12 | 21.4 | 7.7 | |||
| RNB3.5-6 | 1/4 | 6.5 | 12 | 21.4 | 7.7 | |||
Cable size:4~6mm²(A.W.G.12-10) Max current:Imax=48A Material: purple copper Thickness:1.0mm
| Item No. | Dimension(mm) | |||||||
| American Bolts number | d2Φ | B | L | F | E | DΦ | dΦ | |
| RNB5.5-3.5 | #6 | 3.5 | 7.2 | 15.7 | 5.9 | 6.8 | 5.5 | 3.4 |
| RNBS5.5-4 | #8 | 4.3 | 7.2 | 15.7 | 5.9 | |||
| RNBL5.5-4 | #8 | 4.3 | 9.5 | 19.8 | 8.3 | |||
| RNB5.5-5 | #10 | 5.3 | 9.5 | 19.8 | 8.3 | |||
| RNBS5.5-6 | 1/4 | 6.5 | 12 | 25.8 | 13 | |||
| RNB5.5-8 | 5/16 | 8.4 | 15 | 28 | 13.5 | |||
| RNB5.5-10 | 3/8 | 10.5 | 15 | 28 | 13.5 | |||
| RNB5.5-12 | 1/2 | 13 | 19.2 | 32.4 | 16 | |||
Cable size:6~10mm²(A.W.G.8) Max current:Imax=62A Material: purple copper Thickness:1.2mm
| Item No. | Dimension(mm) | |||||||
| American Bolts number | d2Φ | B | L | F | E | DΦ | dΦ | |
| RNB 8-4 | #8 | 4.3 | 8.8 | 23.8 | 9.3 | 8.5 | 7.2 | 4.5 |
| RNBS8-5 | #10 | 5.3 | 8.8 | 23.8 | 11.1 | |||
| RNBM8-5 | #10 | 5.3 | 12.0 | 23.8 | 9.3 | |||
| RNBL8-5 | #10 | 5.3 | 15.0 | 29.8 | 13.8 | |||
| RNBS8-6 | 1/4 | 6.4 | 12.0 | 23.8 | 9.3 | |||
| RNBL8-6 | 1/4 | 6.4 | 15.0 | 29.8 | 13.8 | |||
| RNB 8-8 | 5/16 | 8.4 | 15.0 | 29.8 | 13.8 | |||
| RNB 8-10 | 3/8 | 10.5 | 15.0 | 29.8 | 13.8 | |||
| RNB 8-12 | 1/2 | 13 | 20.0 | 33.5 | 15.0 | |||
Cable size:10~16mm²(A.W.G.6) Max current:Imax=88A Material: purple copper Thickness:1.4mm
| Item No. | Dimension(mm) | |||||||
| American Bolts number | d2Φ | B | L | F | E | DΦ | dΦ | |
| RNB 14-4 | #8 | 4.3 | 12.0 | 29.8 | 13.3 | 10.5 | 9.5 | 5.8 |
| RNBS14-5 | #10 | 5.3 | 12.0 | 29.8 | 13.3 | |||
| RNBS14-6 | 1/4 | 6.4 | 12.0 | 29.8 | 13.3 | |||
| RNBL14-6 | 1/4 | 6.4 | 16.0 | 32.8 | 13.3 | |||
| RNB 14-8 | 5/16 | 8.4 | 16.0 | 31.8 | 13.3 | |||
| RNB 14-10 | 3/8 | 10.5 | 16.0 | 31.8 | 13.3 | |||
| RNB 14-12 | 1/2 | 13 | 22.0 | 41.0 | 19.5 | |||
Cable size:16~25mm²(A.W.G.4) Max current:Imax=115A Material: purple copper Thickness:1.8mm
| Item No. | Dimension(mm) | |||||||
| American Bolts number | d2Φ | B | L | F | E | DΦ | dΦ | |
| RNBS22-5 | #10 | 5.3 | 12.2 | 33.2 | 15.1 | 12.0 | 11.5 | 7.7 |
| RNBL22-5 | #10 | 5.3 | 16.5 | 33.7 | 13.5 | |||
| RNBS22-6 | 1/4 | 6.4 | 12.2 | 33.2 | 15.1 | |||
| RNBL22-6 | 1/4 | 6.4 | 16.5 | 33.7 | 13.5 | |||
| RNB 22-8 | 5/16 | 8.4 | 16.5 | 33.7 | 13.5 | |||
| RNB 22-10 | 3/8 | 10.5 | 16.5 | 33.7 | 13.5 | |||
| RNB 22-11 | 7/16 | 11.5 | 22.0 | 42.5 | 19.5 | |||
| RNB 22-12 | 1/2 | 13.0 | 22.0 | 42.5 | 19.5 | |||
