Non-insulated pin terminals

Description

Argument

Products Description

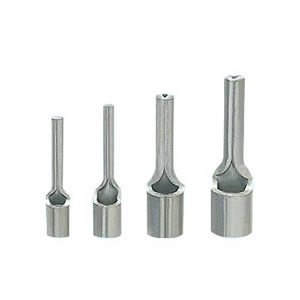

Our non-insulated pin terminals (also referred to as non-insulated pins or non-insulated wire connectors) are precision-engineered for reliable electrical connections. Crafted from 0.75mm thick purple copper—known for its high conductivity and corrosion resistance5—these terminals accommodate cable sizes from 0.5–1.5mm² (A.W.G. 22–16) and handle a maximum current of 19A. Each terminal features a unique Item No. and defined dimensions (F, L, E in mm) for standardized integration.

Key Applications:

Home security systems: Ensure stable, low-resistance connections for sensors and alarm components1.
Small-scale automation equipment: Enable reliable signal transfer in compact control systems6.

Product Parameters

Cable size:0.5~1.5mm²(A.W.G.22~16) Max current:Imax=19A Material: purple copper Thickness:0.75mm

Item No.	Dimension(mm)

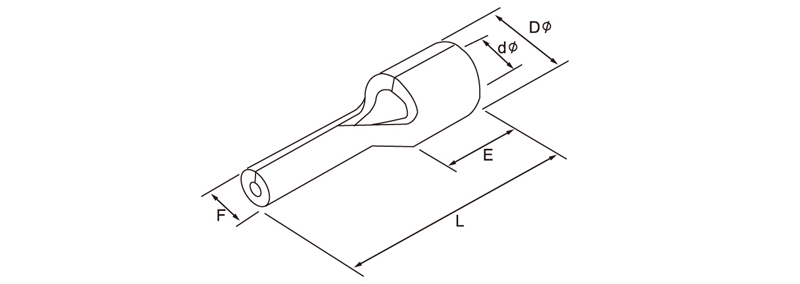

	F	L	E	DΦ	dΦ
PTN1.25-9	1.9	13.8	4.8	3.4	1.7
PTN1.25-10	1.9	14.8
PTN1.25-12	1.9	16.8
PTN1.25-13	1.9	17.8
PTN1.25-18	1.9	22.8

Cable size:1.5~2.5mm²(A.W.G.16~14) Max current:Imax=27A Material: purple copper Thickness:0.75mm

Item No.	Dimension(mm)
	F	L	E	DΦ	dΦ
PTN2-9	1.9	13.8	4.8	4.1	2.3
PTN2-10	1.9	14.8
PTN2-12	1.9	16.8
PTN2-13	1.9	17.8

Cable size:2.5~4mm²(A.W.G.14~12) Max current:Imax=36A Material: purple copper Thickness:1.0mm

Item No.	Dimension(mm)
	F	L	E	DΦ	dΦ
PTN3.5-10	2.8	14.8	6	5	3
PTN3.5-13	2.8	19.8

Cable size:4~6mm²(A.W.G.12~10) Max current:Imax=48A Material: purple copper Thickness:1.0mm

Item No.	Dimension(mm)
	F	L	E	DΦ	dΦ
PTN5.5-13	2.8	19.8	6	5.6	3.4
