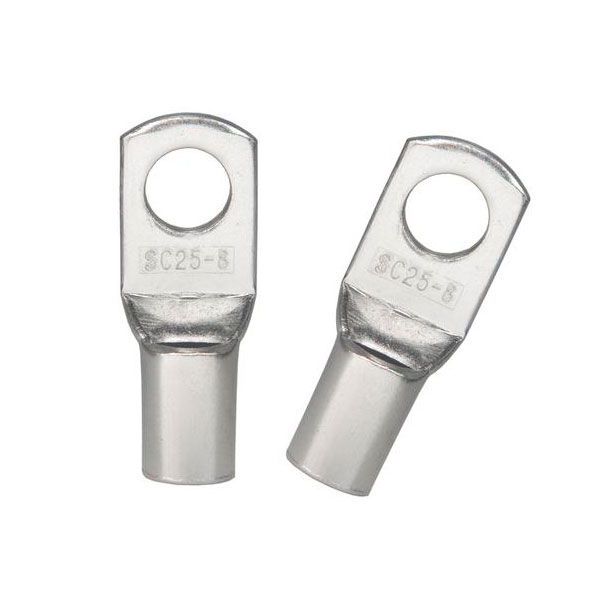

Copper Tube Lug(SC)

Our Copper Tube Lugs (SC) are expertly crafted from high - purity copper, offering superior electrical conductivity and durability. Ideal for battery - related applications, they feature unique ITEM NO. for easy tracking. In the automotive industry, they ensure strong battery - to - system connections, while in solar power storage, they enable efficient battery bank linking. Precision - manufactured for a secure fit and rigorously tested to meet industry standards, these lugs are the ultimate solution for reliable electrical cable termination and connection.
Send Inquiry
Description
Argument
Products Description
Copper Tube Lugs (SC) are high - performance electrical components engineered for connecting and terminating electrical cables, with a particular focus on battery - related applications.


Crafted from high - purity copper, these lugs leverage the metal's exceptional electrical conductivity and durability to ensure reliable power transmission. Each lug is assigned a unique ITEM NO., enabling seamless tracking and efficient inventory management.


In the automotive industry, Copper Tube Lugs (SC) serve as vital battery cable lugs, establishing robust connections between batteries and vehicle electrical systems. Meanwhile, in solar power storage setups, they play a crucial role in linking battery banks, facilitating efficient power transfer.


Manufactured with precision, these lugs offer a snug and secure fit, effectively reducing the risk of loose connections. Rigorous testing for both electrical performance and mechanical strength guarantees that they meet stringent industry standards, making them a trusted choice for various demanding applications.

Product Parameters

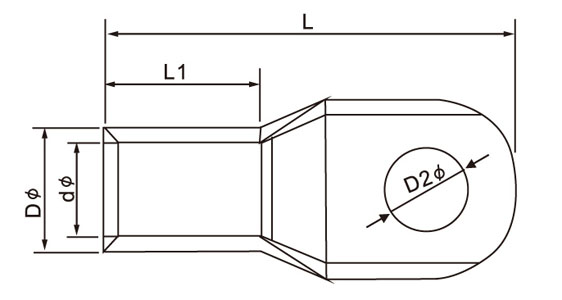

COPPER TUBE LUG(SC)

ITEM NO.D2φ(mm)Dimensions(mm)Conductor section(mm²)
dφDΦL1L
SC1.5-55.31.93.356.518.0 1.5
SC2.5-44.32.64.0 7.0 18.0 2.5
SC2.5-55.32.64.0 7.0 20.0 2.5
SC4-55.33.24.87.520.5 4
SC4-66.43.24.87.522.0 4
SC6-55.34.15.59.0 23.0 6
SC6-66.44.15.59.0 23.0 6
SC10-66.45.16.59.525.0 10
SC10-88.45.16.59.527.0 10
SC16-66.46.48.0 12.230.7 16
SC16-88.46.48.0 12.230.7 16
SC25-66.47.49.0 13.334.0 25
SC25-88.47.49.0 13.334.0 25
SC35-88.48.510.514.538.0 35
SC35-1010.58.510.514.538.0 35
SC50-88.49.612.0 16.542.5 50
SC50-1010.59.612.0 16.542.5 50
SC70-1010.511.914.519.0 50.0 70
SC70-121311.914.519.0 50.0 70
SC95-1010.513.216.0 20.356.5 95
SC95-121313.216.0 20.356.5 95
SC120-121315.619.0 24.564.0 120
SC120-161715.619.0 24.564.0 120
SC150-121317.421.0 29.0 69.0 150
SC150-161717.421.0 29.0 69.0 150
SC185-12131923.0 32.0 72.0 185
SC185-16171923.0 32.0 72.0 185
SC240-161721.826.0 38.0 92.0 240
SC240-202121.826.0 38.0 92.0 240
SC300-161724.830.0 43.0 101.0 300
SC300-202124.830.0 43.0 101.0 300
SC400-16172834.0 46.0 110.0 400
SC400-20212834.0 46.0 110.0 400
SC500-16173038.0 47.0 119.0 500
SC500-20213038.0 47.0 119.0 500
SC630-20213545.0 56.0 135.0 630
SC800-22
3950.0 60.0 170.0 800
SC1000-22
4456.0 87.0 200.0 1000

 Copper Tube Lug(SC) Cable lug
